Eaton

FD30 – Across The Line

The FD30 controller operates Across-The-Line where full voltage is applied to the motor for starting by the use of a single motor contactor. Starting inrush current is approximately 600% of rated full load amperes. The FD30 can be programmed for either fully automatic or semiautomatic operation.

Contact for Pricing & More Information

Specs

7” Color Touchscreen

  • 800x480, high resolution display
  • Fast processor reduces input lag
  • Simplified tab system makes navigation and programming easier

USB Port

  • Downloads history, statistics, configuration, diagnostics, and startup files
  • History can log up to 65,000 events
  • Upload configuration to reduce programming time
  • Update firmware

Optional Boards

  • Relay board provides four (4) One Form-C programmable output relays
  • MODBUS board provides output communication via RS422 or RS485
  • Secondary 4-20mA device board provides additional connections for external pressure transducers, temperature sensors, etc.
  • Alarm board provides a supervisory powered alarm outputs

Custom Order Products

Products noted as "Custom Order" require orders be placed with a member of our team. Please contact us for pricing, availability, and shipping information.

Download: fd30-across-the-line.pdf
Two men working on industrial equipment. One is adjusting a red machine, while the other, wearing a cap and holding a device, observes. They are in a well-lit room with various pipes and machinery.

Have a question about one of our products?

Get in touch with us today, we are here to help.

EMAIL CALL

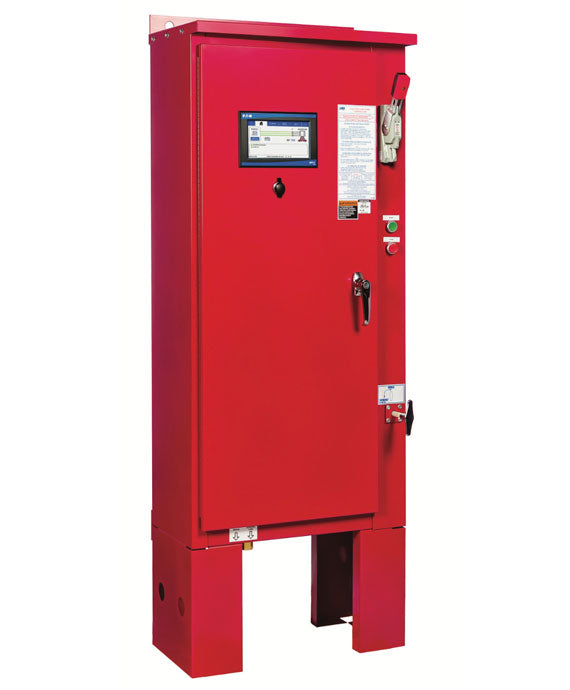

The Eaton FD30 Across-The-Line electrical control cabinet, finished in red, features a digital display alongside a lockable handle and multiple labels on the front. It stands elevated on short legs and includes a motor contactor switch to the right of the display for Across-The-Line operation.
