Eaton

FD20 – Single Phase

The FD20 Limited Service Controller can be used for motors 30HP or less, driving special fire service pumps where acceptable to the authority having jurisdiction. They are available with across-the-line starting only, with starting inrush current approximately 600% of rated motor full load amperes. All models come with microprocessor and are also available complete with automatic power transfer switch.

Contact for Pricing & More Information

Specs

7” Color Touchscreen

  • 800x480, high resolution display
  • Fast processor reduces input lag
  • Simplified tab system makes navigation and programming easier

USB Port

  • Downloads history, statistics, configuration, diagnostics, and startup files
  • History can log up to 65,000 events
  • Upload configuration to reduce programming time
  • Update firmware

Optional Boards

  • Relay board provides four (4) One Form-C programmable output relays
  • MODBUS board provides output communication via RS422 or RS485
  • Secondary 4-20mA device board provides additional connections for external pressure transducers, temperature sensors, etc.
  • Alarm board provides a supervisory powered alarm outputs

Custom Order Products

Products noted as "Custom Order" require orders be placed with a member of our team. Please contact us for pricing, availability, and shipping information.

Download: EPCT-IOM-MANUAL-2020_1.pdf
Download: fd20-limited.pdf
Two men working on industrial equipment. One is adjusting a red machine, while the other, wearing a cap and holding a device, observes. They are in a well-lit room with various pipes and machinery.

Have a question about one of our products?

Get in touch with us today, we are here to help.

EMAIL CALL

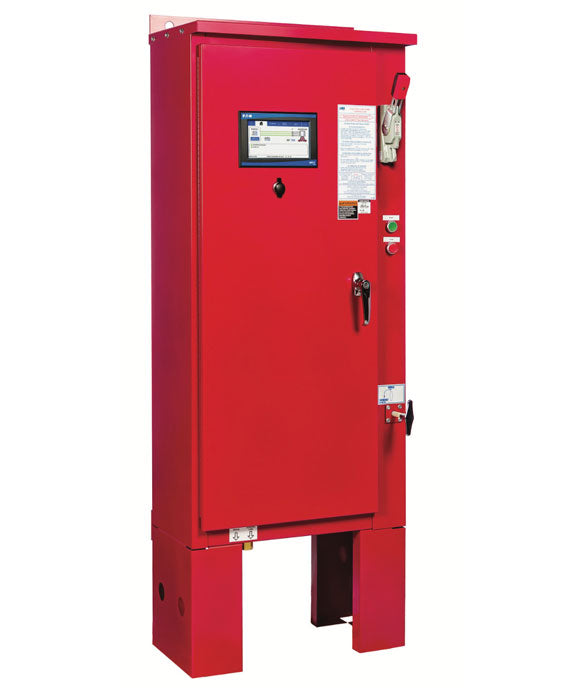

The Eaton FD20 – Single Phase is a red industrial control panel featuring a front screen, buttons, and a lockable handle. It incorporates a microprocessor for precise operation and rests on a metal base adorned with various labels and indicators, ensuring seamless management of fire service pumps.
